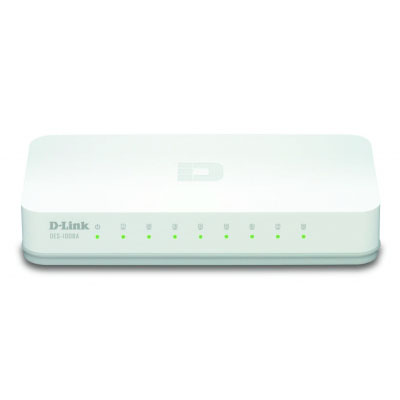

8-Port 10/100 Switch
Dlink logo

Item #: DES-1008A

By: Dlink

Price: Call For Price

In Category:Network / Switch



Network / 8-Port 10/100 Switch

Description:

Key Features

  • Inexpensive Fast Ethernet solution for
  • Home/SOHO
  • 8 10/100 Mbps Fast Ethernet ports
  • Auto MDI/MDIX crossover for all ports
  • Store-and-forward switching scheme
  • Full/half-duplex for Ethernet/Fast
  • Ethernet speeds
  • IEEE 802.3x Flow Control
  • Plug-and-play installation
  • RoHS compliant

SWITCHING FABRIC

  • 1.6 Gbps switching fabric

Standards

  • IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
  • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
  • ANSI/IEEE 802.3 NWay auto-negotiation
  • IEEE 802.3x flow control

Protocol

  • CSMA/CD

Data Transfer Rates

  • Ethernet:
  • 10 Mbps (half duplex)
  • 20 Mbps (full duplex)
  • Fast Ethernet:
  • 100 Mbps (half duplex)
  • 200 Mbps (full duplex)

Topology

  • Star

Media Interfa ce Exchange

  • Auto MDI/MDIX adjustment for all ports

Network Cables

  • 10BASE-T:
  • UTP CAT 3/4/5/5e (100 m max.)
  • EIA/TIA-586 100-ohm STP (100 m max.)
  • 100BASE-TX
  • UTP CAT 5/5e (100 m max.)
  • EIA/TIA-568 100-ohm STP (100 m max.)

LED Indicators

  • Per port:
  • Link/Activity
  • Per device:
  • Power

Transmission Method

  • Store-and-forward

MAC Address Tab le

  • 1K entries per device

MAC Address Learning

  • Automatic update

Packet Filtering/Forwarding Rates

  • Ethernet: 14,880 pps per port
  • Fast Ethernet: 148,800 pps per port

RAM Buffer

  • 57 KBytes per device

DC Input

  • External 5V/1A power adapter

Power Consumption

  • Power On (Standby):
  • DC input: 0.5 watts
  • AC input: 1.4 watts
  • Maximum:
  • DC input: 3.25 watts
  • AC input: 4.23 watts

Heat Dissipa tion

  • Power On (Standby):
  • AC input: 4.77 BTU/h
  • Maximum:
  • AC input: 14.42 BTU/h

Operating Temperature

  • 0 to 40 ?C (32 to 104 ?F)

STORAGE TEMPERATURE

  • -10 to 70 ?C (14 to 158 ?F)

OPERATING HUMIDITY

  • 10% to 90% RH non-condensing

Storage Humidity

  • 5% to 90% RH non-condensing

Device Dimensions (W x D x H)

  • 128 x 68.5 x 25.4 mm (5.0 x 2.7 x 1.0 inches)

Certifications

  • FCC Class B
  • CE Class B
  • CB
