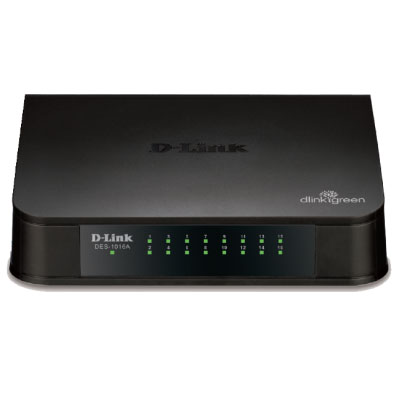

16-port 10/100 Switch
Dlink logo

Item #: DES-1016A

By: Dlink

Price: Call For Price

In Category:Network / Switch



Network / 16-port 10/100 Switch

Description:

Key Features

  • Built-in D-Link Green Technology
  • Inexpensive Fast Ethernet solution for
  • Home/SOHO
  • Sixteen 10/100 Mbps Fast Ethernet ports
  • 3.2 Gbps switching fabric
  • Auto MDI/MDIX crossover for all ports
  • Secure store-and-forward switching scheme
  • Full/half-duplex for Ethernet/Fast
  • Ethernet speeds
  • IEEE 802.3x Flow Control
  • Supports 9,216 Byte Jumbo Frames
  • RoHS compliant
  • Plug-and-play installation

Standards

  • IEEE 802.1P QoS support
  • IEEE 802.3 10BASE-T Ethernet (twistedpair copper)
  • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
  • IEEE 802.3az Energy-Efficient Ethernet
  • (EEE)
  • ANSI/IEEE 802.3 NWay auto-negotiation
  • IEEE 802.3x Flow Control

Protocol

  • CSMA/CD

Data Transfer Rates

  • Ethernet:
  • 10 Mbps (half duplex)
  • 20 Mbps (full duplex)
  • Fast Ethernet:
  • 100 Mbps (half duplex)
  • 200 Mbps (full duplex)

Topology

  • Star

Network Cables

  • 10BASE-T:
  • UTP CAT 3, 4, 5/5e (100 m max.)
  • EIA/TIA-586 100-ohm STP (100 m max.)
  • 100BASE-TX, 1000BASE-T:
  • UTP CAT 5/5e (100 m max.)
  • EIA/TIA-568 100-ohm STP (100 m max.)

Media Interfa ce Exchange

  • Auto MDI/MDIX adjustment for all ports
  • LED Indicators
  • Per port: Link/Activity/Speed
  • Per device: Power

Transmission Method

  • Store-and-forward

MAC Address Table

  • 8K entries per device

MAC Address Learning

  • Automatic update

Packet Filtering/Forwarding Rates

  • Ethernet: 14,880 pps per port
  • Fast Ethernet: 148,800 pps per port

RAM Buffer

  • ?256 KBytes per device

DC Input

  • Switching 5 V / 1 A Level V Power
  • Adapter
  • Power Consumption
  • Power On (Standby):
  • AC input: 2.36 watts
  • DC input: 1.2 watts
  • Maximum:
  • AC input: 2.69 watts
  • DC input: 1.6 watts

Operating Temperature

  • 0 to 40 ?C (32 to 104 ?F)

STORAGE TEMPERATURE

  • -10 to 70 ?C (14 to 158 ?F)

OPERATING HUMIDITY

  • 10% to 90% RH non-condensing

Storage Humidity

  • 5% to 90% RH non-condensing

Device Dimensions (W x D x H)

  • 155.7 x 122 x 41 mm
  • (6.13 x 4.80 x 1.61 inches)

Certifications

  • CE Class B
  • FCC class B
  • CB
  • RoHS
  • EuP
